NO. | Property | Description |
1 | Brand/Origin Place | Safebuild/Shandong China |

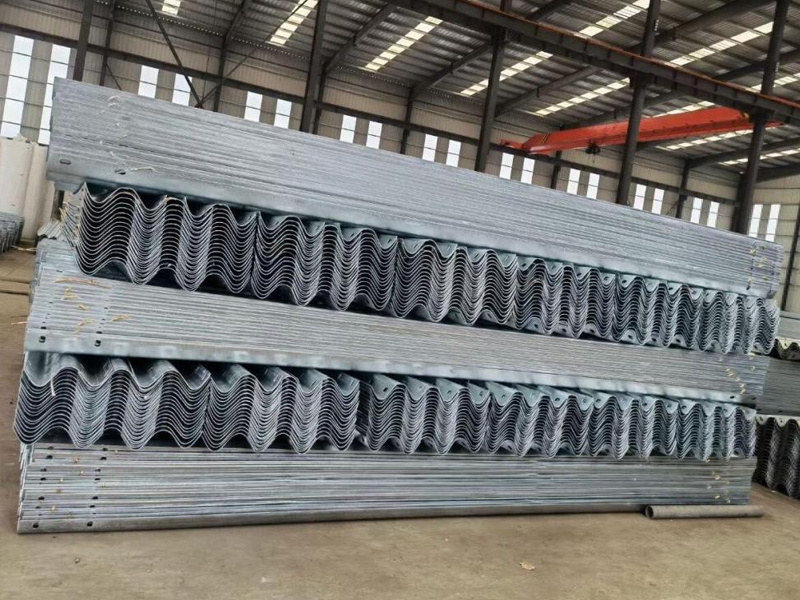

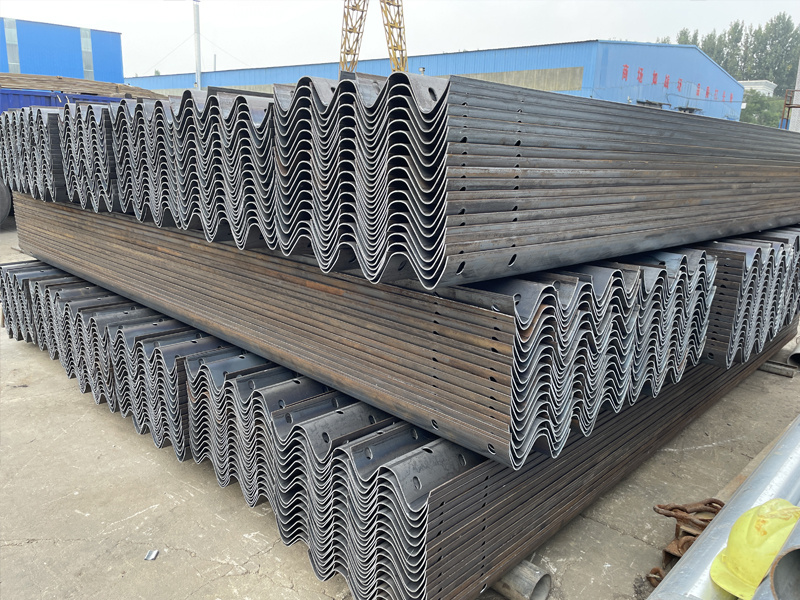

2 | Product Name | W Beam Highway Guardrail |
3 | Material | Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
4 | Surface treatment | Hot dipped galvanized or powder coating |
5 | Zinc coating | 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized |
6 | Thickness | 2.75/3.0/4.0mm or customized |
7 | Standard Size | 4130*310*81*2.5/2.75/3.0mm, 4320*310*85*2.5/2.75/3.0mm or customized |
8 | Certificate | AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV |
9 | Application | Highway,dangerous area road safety |
Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.
W Beam Guardrail Per AASHTO M180 | ||||
Product | Size(L * W * WH*T) | Post spacing: 4 m | Post spacing: 2 m | Coating Treatment |
Guardrail beam | W Beam 4320*310*83*2.75mm | 250 | 250 |
Hot Dip Galvanized: 550g/㎡-1100g/㎡ Powder spraying: Pre-Galvanized + Powder spraying |
Post | U Post 1820*150*75*5mm | 251 | 501 | |
Spacer Block | U Spacer 350*150*75*5mm | 251 | 501 | |
Washer | 75*44*4mm | 251 | 501 | |
Reflector | 50*70*120*1.5mm | 250 | 250 | |
Terminal End | Fishtail End 700*460*2.75mm | 2 pcs | 2 pcs | |
Bolts & Nuts | M16*35mm | 2000 | 2000 | |
Bolts & Nuts | M16*40mm | 502 | 1002 | |
Bolts & Nuts | M16*50mm | 251 | 501 | |
Notes | 1.Shape:Two waves, W-beam. L:2000/2300/3810/4000/4300/4320 W:306/310/312/380 Thickness:2.75/3/4mm 3.Guardrail Standards:JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317. 4.Steel Material: Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. 8.Guardrail feature:Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, envir onmental protection, etc. |
01 High quality steel materials
Safebuild use prime steel in each guardrail design.The advanced technology isuniform and smooth, without stripping rust,and the impact of collision has reached thetraffic sector standard.
02 Strong customization capability
With a R&D team of 12 people with more than 10 years experience, our factory provides from design, mold opening to production. So far, we have provided OEM and ODM services to more than 120 customers.
03 Strict quality control system
6 QC employees and 15 steps quality checking ensure our highway guardrail 100% reaching the standards of safety. Galvanized guardrail plate, not raised and cracking, the saline spray test does not have corrosion,the phenomenon of inflated and fall off without folds after high and low temperature, strong resistance to impact resistance.
04 Professional export services
We have more than 25 years of export experience in technology research and development, quality control, packaging and shipping and other links to provide professional advice and service.
As a professional manufacturer of highway guardrail , all of our products are with CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety
