Highway Guardrail

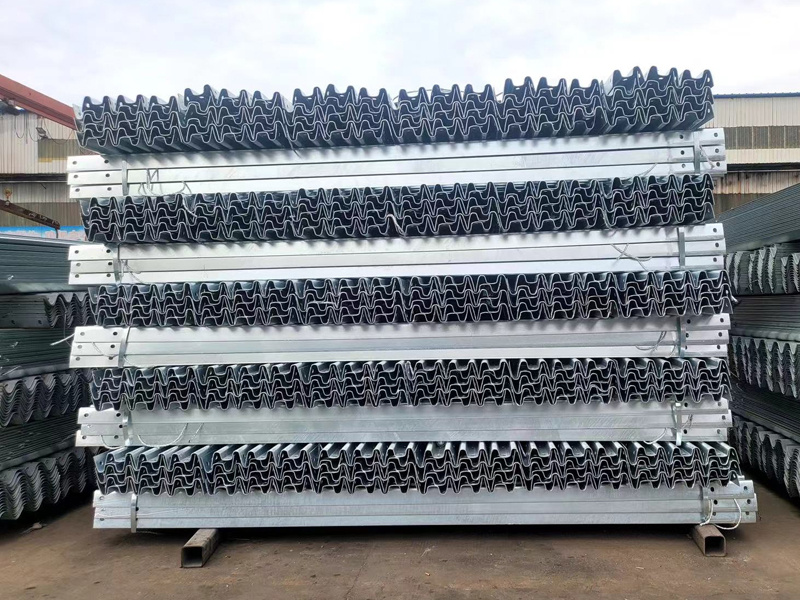

B Beam Highway Guardrail

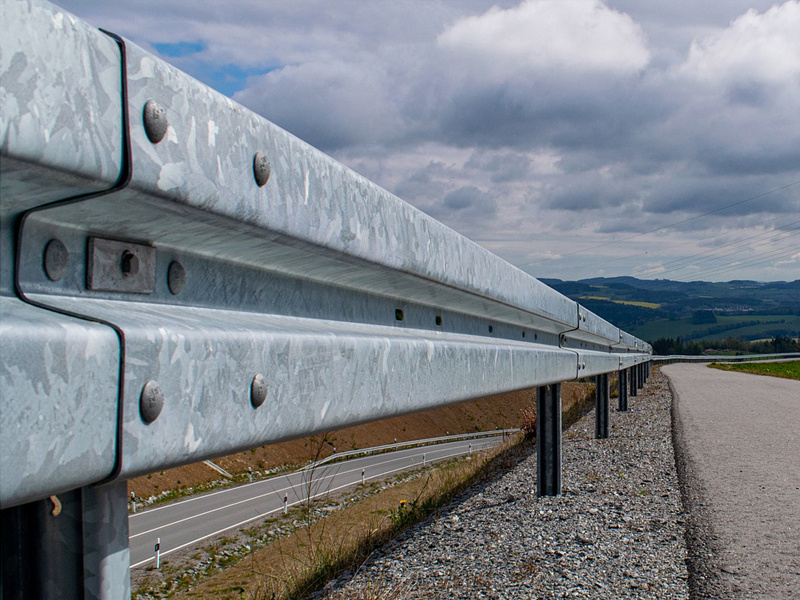

B Type Beam Highway Guardrail is a new type road barrier designed to prevent the vehicle from running out of the road in high-speed area which is very popular in these years.

Always on time

Acceptable price

Excellent quality

Description
Factory Strength
Parameters
NO.PropertyDescription
1Brand/Origin PlaceSafebuild/Shandong China
2Product NameB Type Beam Highway Guardrail
3MaterialSteel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4Surface treatmentHot dipped galvanized or powder coating
5Zinc coating300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6Thickness2.5-5.0mm or customized
7Standard Size4130*310/304*2.5-5.0mm, 4320*310/304*2.5-5.0mm or customized
8CertificateAASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9ApplicationHighway,dangerous area road safety


Highway Guardrail Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.


B Beam Guardrail Per AASHTO M180

Product

Size(L * W * WH*T)

Post spacing: 4 m
Quantity per KM

Post spacing: 2 m
Quantity per KM

Coating Treatment

Guardrail beam

B Beam

4300*310*75*2.5mm

250

250





Hot Dip Galvanized:

550g/㎡-1100g/㎡

Powder spraying:

Pre-Galvanized + Powder spraying

Post

U Post

1820*150*75*5mm

251

501

Spacer Block

U Spacer

350*150*75*5mm

251

501

Washer

75*44*4mm

251

501

Reflector

50*70*120*1.5mm

250

250

Terminal End

Fishtail End

700*460*2.75mm

2 pcs

2 pcs

Bolts & Nuts

M16*35mm

2000

2000

Bolts & Nuts

M16*40mm

502

1002

Bolts & Nuts

M16*50mm

251

501









Notes

      1.Shape:B waves, B-beam.
      2.Normal Specification: Available in different sizes.

      L:2000/2300/3000/3300/4000/4300

      W:304/306/308/310/312
      Height:73/75/77

      Thickness:2.5/2.75/3/4mm

      3.Guardrail Standards:JT/T2811995/AASHTO M180/RAL RG620/AS NZS/ 3845-1999/EN1317.

      4.Steel Material: Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
      5.Surface treatment: hot-dip galvanized and galvanized plastic spraying coating.
      6.Guardrail relevant parts:Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors.
      7.We accept ODM producing as client's drawing.

      8.Guardrail feature:Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher

       security, environmental protection, etc.

01 High quality steel materials

Safebuild use prime steel in each guardrail design.The advanced technology isuniform and smooth, without stripping rust,and the impact of collision has reached thetraffic sector standard.


02 Strong customization capability

With a R&D team of 12 people with more than 10 years experience, our factory provides from design, mold opening to production. So far, we have provided OEM and ODM services to more than 120 customers.


03 Strict quality control system

6 QC employees and 15 steps quality checking ensure our highway guardrail 100% reaching the standards of safety. Galvanized guardrail plate, not raised and cracking, the saline spray test does not have corrosion,the phenomenon of inflated and fall off without folds after high and low temperature, strong resistance to impact resistance.


04 Professional export services

We have more than 25 years of export experience in technology research and development, quality control, packaging and shipping and other links to provide professional advice and service.

As a professional manufacturer of highway guardrail , all of our products are with  CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety.
