NO. | Property | Description |
1 | Brand/Origin Place | Safebuild/Shandong China |
2 | Product Name | Highway Guardrail Round Post |
3 | Material | Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
4 | Surface Treatment | Hot dipped galvanized or powder coating |
5 | Zinc Coating | 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized |
6 | Thickness | 4.0/5.0/6.0mm or customized |
7 | Standard Size | Φ114*4.5,Φ140*4.5mm or customized |
8 | Certificate | AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV |
9 | Post Feature | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc |

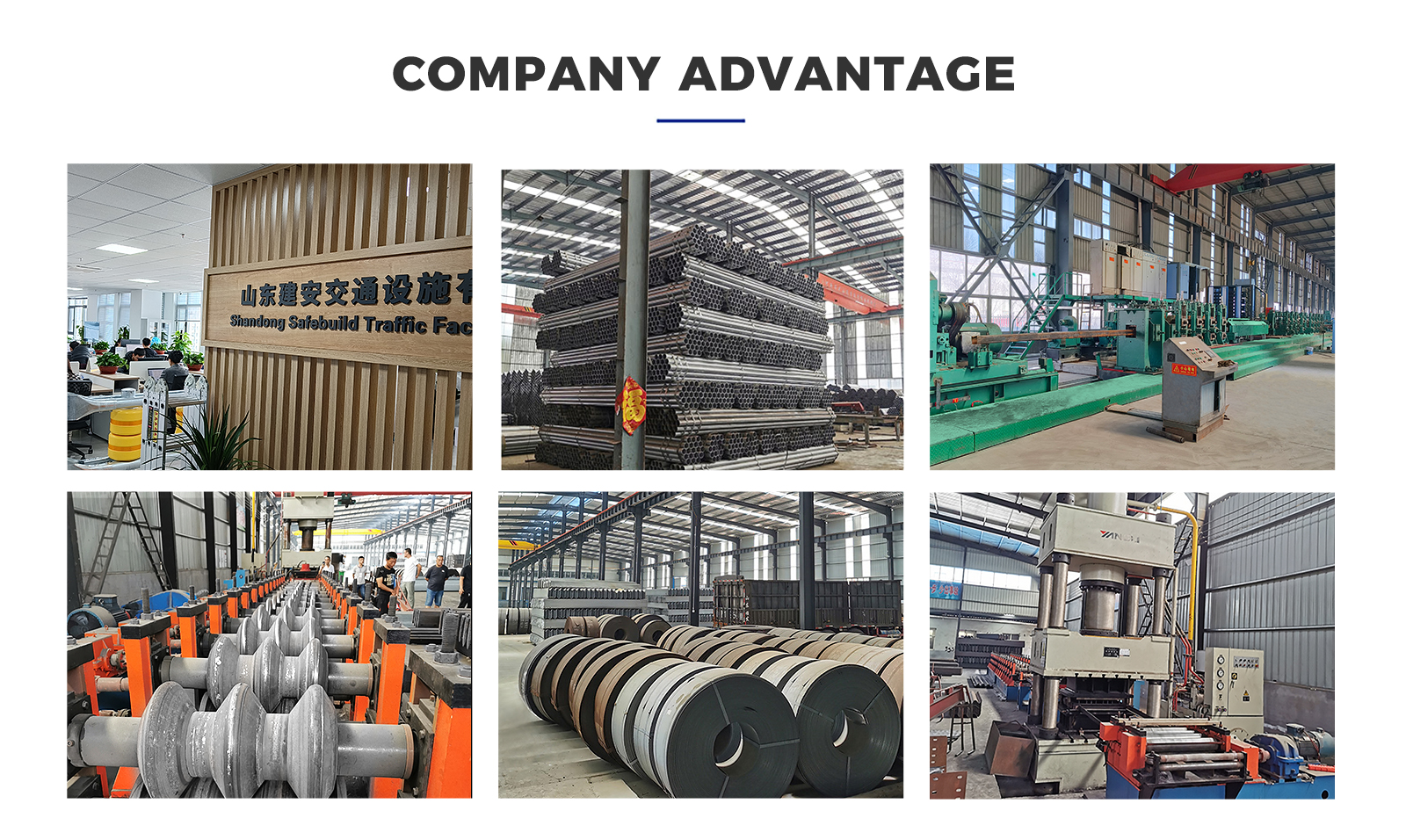

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.
As a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235B, Q345B and Q255B or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.The most popular types of guardrail posts are C Type, U Type, H(I BEAM) Type, Sigma Type, Square Colum(tubular)Type, Round Colum(tubular)Type and Z Type.

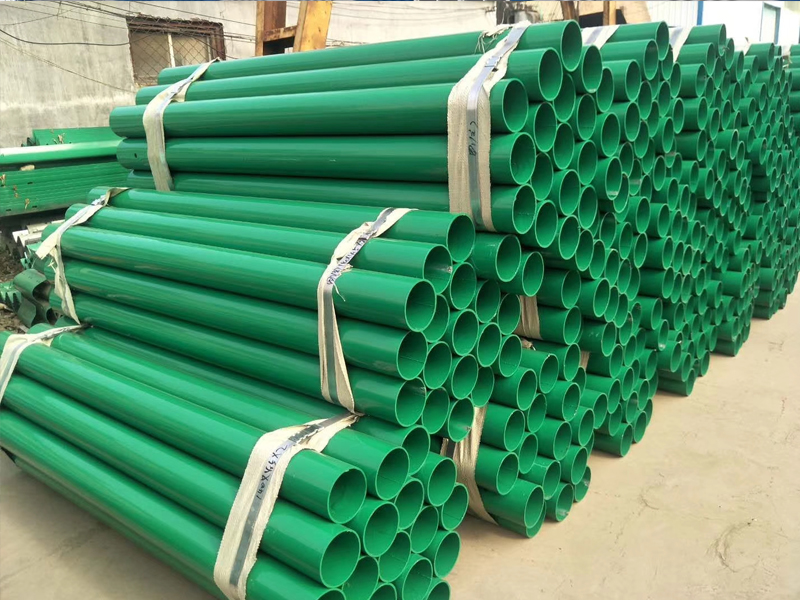

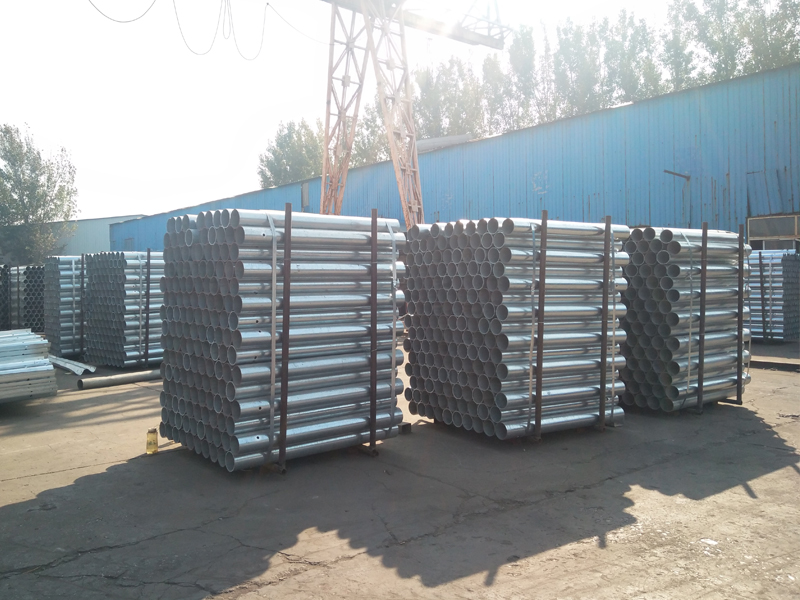

Round post is the most common kind of highway guardrail post. It is made of steel pipe through cutting,punching and surface treatment. It has the advantages of simple production process, low cost and convenient maintenance and replacement.One end of the Round post is connected to the guardrail plate by bolts, nuts and connectors, and the other end is embedded in the earth or fastened to the road surface by flannel, thus playing a supporting role and effectively preventing vehicles or pedestrians from rushing out.

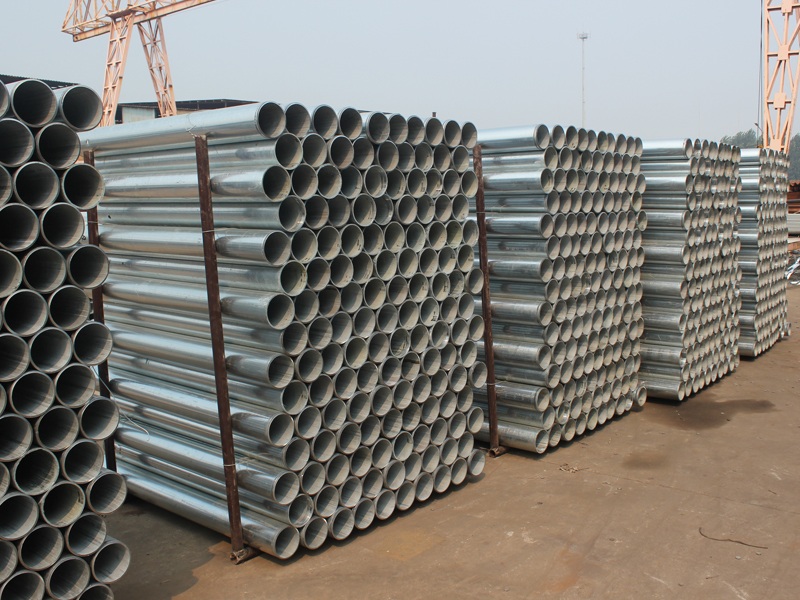

The surface of Round post is generally treated by hot-dip galvanizing process.This surface treatment method can effectively prevent corrosion, withstand high temperature and have a long life. Meanwhile, its appearance is simple and easy to assemble and replace accessories.
Highway Guardrail System Parts List Per 1KM | |||
Product Name | Size(L * W * WH*T) | Post spacing: 4 m Quantity per KM | Post spacing: 2 m Quantity per KM |
Guardrail beam | W Beam 4320*310*83*2.75mm | 250 | 250 |
Post | Round Post 2150*140*4.5mm | 251 | 501 |
Spacer Block | Block 178*196*200*4.5mm | 251 | 501 |
Post Cap | Φ140mm | 251 | 501 |
Washer | 75*44*4mm | 251 | 501 |
Reflector | 50*70*120*1.5mm | 250 | 250 |
Terminal End | Fishtail End 700*460*2.75mm | 2 | 2 |
Bolts & Nuts | M16*35mm | 2000 | 2000 |
Bolts & Nuts | M16*40mm | 251 | 501 |
Bolts & Nuts | M16*50mm | 251 | 501 |
Highway Guardrail Post | |
Steel Post Shape | U/C/H/Z/UPN/Flange/Square/Round/Sigma Post or Customized |
U Shape Post Size | 100*55*4.0,125*62.5*5.0,150*75*5.0,150*100*5.0,178*76*5.5/ 6.0mm,etc |
C Shape Post Size | 100*50*25*5.0,120*55*16*4.0,125*55*18*5.0,125*62.5*25*5.0, 150*75*25*4.75,150*100*25*5.0mm,etc |
H Shape Post Size | 150*100*4.3*5.5,100*100*6.0*8.0mm |
Z Shape Post Size | 90*50*25*4.0,65*75*50*10mm |
UPN120 Post Size | 120*55*7.0*9.0mm |
Flange Post Size | As the shape of the post |
Square Post Size | 130*130*6.0mm |
Round Post Size | Φ114*4.5,Φ140*4.5mm |
Sigma Post Size | 100*55*16*4.0mm |
All above the post length:1200/1500/1850/1950/2000/2150/2200/2500mm | |
All size and thickness can be customized | |
Steel Material | Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M |
Post Standards | JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317 |
Surface treatment | Hot-dip galvanized and galvanized plastic spraying coating |
Zinc Coating | 300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized |
Post Feature | Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc |

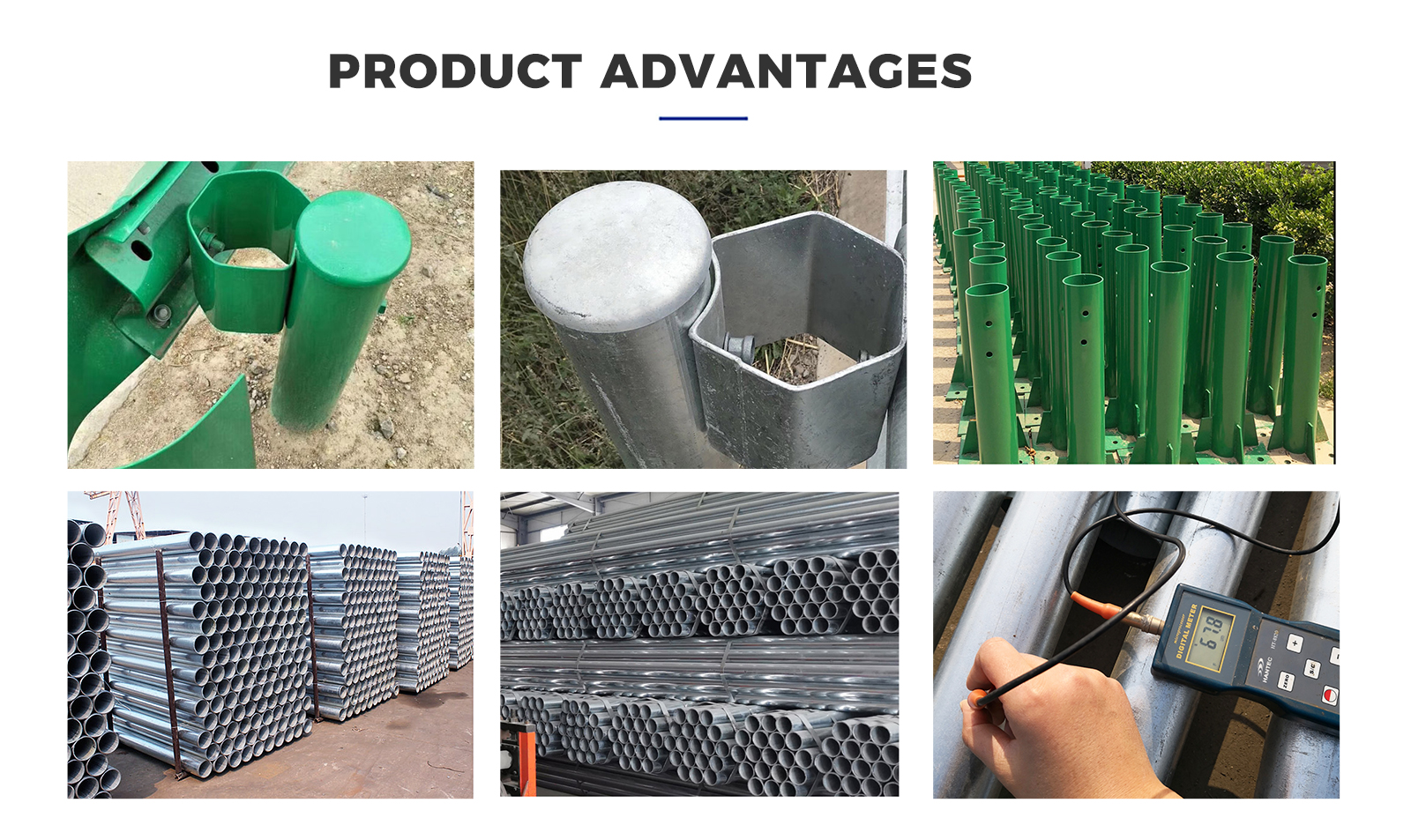

Advantages of Round-shaped galvanized steel posts for highway guardrail: * Fully hot dip galvanized to ASTM A123. * Superior performance, High strength, high hardness
* Easy transportation, storage and handling * Long life and durability * Simple design * Cost effective
As a professional manufacturer of highway guardrail , all of our products are with CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety.
01 High quality steel materials
Safebuild use prime steel in each guardrail design.The advanced technology isuniform and smooth, without stripping rust,and the impact of collision has reached thetraffic sector standard.
02 Strong customization capability
With a R&D team of 12 people with more than 10 years experience, our factory provides from design, mold opening to production. So far, we have provided OEM and ODM services to more than 120 customers.
03 Strict quality control system
6 QC employees and 15 steps quality checking ensure our highway guardrail 100% reaching the standards of safety. Galvanized guardrail plate, not raised and cracking, the saline spray test does not have corrosion,the phenomenon of inflated and fall off without folds after high and low temperature, strong resistance to impact resistance.
04 Professional export services

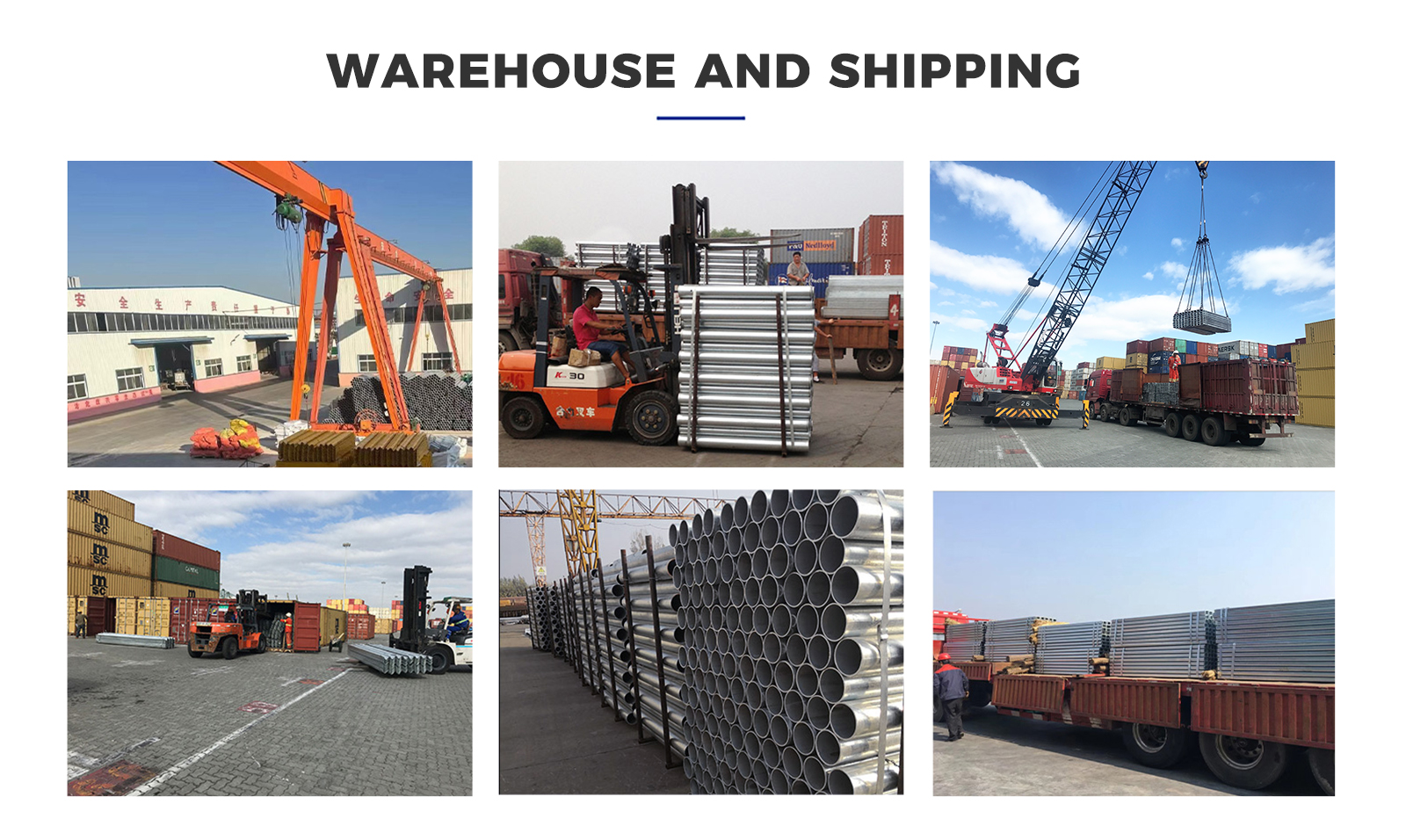

We have more than 25 years of export experience in technology research and development, quality control, packaging and shipping and other links to provide professional advice and service.
