Highway Guardrail

Steel Ground Anchor Highway Guardrail

Radius/Curved Beam Highway Guardrail is a special road barrier giving a smooth transition on curves with a radius from 1.5m to 50m with curved shape. It concaves in various degrees for different roads application.

Always on time

Acceptable price

Excellent quality

Description
Factory Strength
Parameters
NO.PropertyDescription
1Brand/Origin PlaceSafebuild/Shandong China
2Product NameRadius/Curved Beam Highway Guardrail
3MaterialSteel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4Surface treatmentHot dipped galvanized or powder coating
5Zinc coating300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6Thickness2.5/2.75/3.0mm or customized
7Standard Size Customized
8CertificateAASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9Application Curves transition


Highway Guardrail Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.

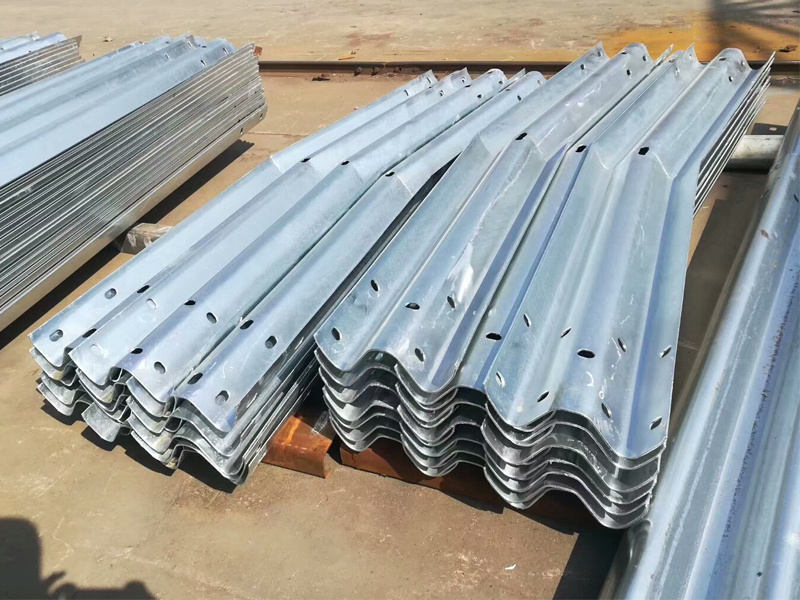

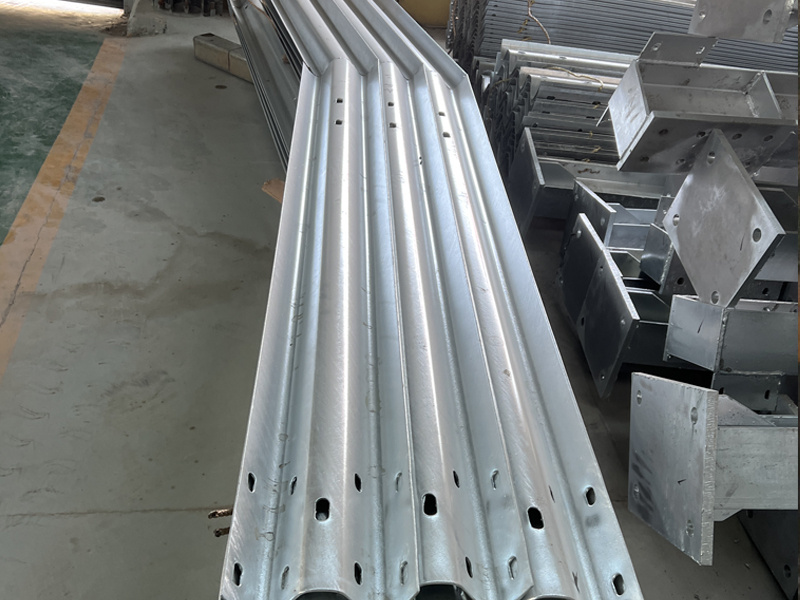

Convex & Concave Curved Guardrail Panels

Normal size of beam

L:2000/2300/3810/4000/4300/4320 Available in different sizes
W:306/310/312/380
Height: 80/82/83/85
Thickness:2.75/3/4mm

Size of post

As standard or customized

Guardrail beam style

Convex, Concave Curved Guardrail

Surface treatment

Hot dipped galvanized or plastic sprayed coating

Guardrail standard

JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317

Steel grade

Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.

Full side galvanized

550 (80µ) / 610 (85µ) / 1100 (160µ) / 1200 g/m2 (170µ) or as per your request

Guardrail feature

Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.

Guardrail relevant parts

Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors.

MOQ

1 meter

Price item

EXW,FOB,CIF,CFR,etc

Delivery

10-25 working days

We accept ODM producing as client's drawing.

01 High quality steel materials

Safebuild use prime steel in each guardrail design.The advanced technology isuniform and smooth, without stripping rust,and the impact of collision has reached thetraffic sector standard.


02 Strong customization capability

With a R&D team of 12 people with more than 10 years experience, our factory provides from design, mold opening to production. So far, we have provided OEM and ODM services to more than 120 customers.


03 Strict quality control system

6 QC employees and 15 steps quality checking ensure our highway guardrail 100% reaching the standards of safety. Galvanized guardrail plate, not raised and cracking, the saline spray test does not have corrosion,the phenomenon of inflated and fall off without folds after high and low temperature, strong resistance to impact resistance.


04 Professional export services

We have more than 25 years of export experience in technology research and development, quality control, packaging and shipping and other links to provide professional advice and service.

01 Testing: For highway guardrail, it will be tested separately before leaving the factory to ensure that the dimensions and parameters meet the standards.

02 Certificate:As a professional manufacturer of highway guardrail , all of our products are with  CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety.
