Guardrail Accessories

Highway Guardrail W-Beam Fishtail End

The fishtail end is mainly refer to the European and American countries design concept, shape, like the fishtail which divided into two types of specifications and models with W beam and Thrie beam.

Always on time

Acceptable price

Excellent quality

Description
Factory Strength
Parameters
NO.PropertyDescription
1Brand/Origin PlaceSafebuild/Shandong China
2Product Name Highway Guardrail Fishtail Terminal End
3MaterialSteel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M.
4Surface TreatmentHot dipped galvanized or powder coating
5Zinc Coating300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized
6Thickness2.75/2.85/3.85/4.0mm or customized
7Standard SizeCustomized according to the shape of end
8CertificateAASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV
9Post FeatureFor the end of the section of the road, and for the protection and aesthetic effect of the end of the fence panels guardrail


Guardrail Accessories Description

Safebuild is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.


Highway Guardrail Terminal End are the specially designed end pieces of a road safety barrier system. The leading terminal is on the end of the road safety barrier system that faces oncoming traffic and the trailing terminal is on the other end. Guardrail end terminals are designed to provide a soft gating impact to prevent the end rail from spearing an impacting vehicle. Terminals also introduce tensile and flexural strength necessary to ensure redirection performance of the length-of-need section. Because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types: Fishtail End,Buffer End,Bullnose End,Anchor End,Bridge End,SKT End, etc.

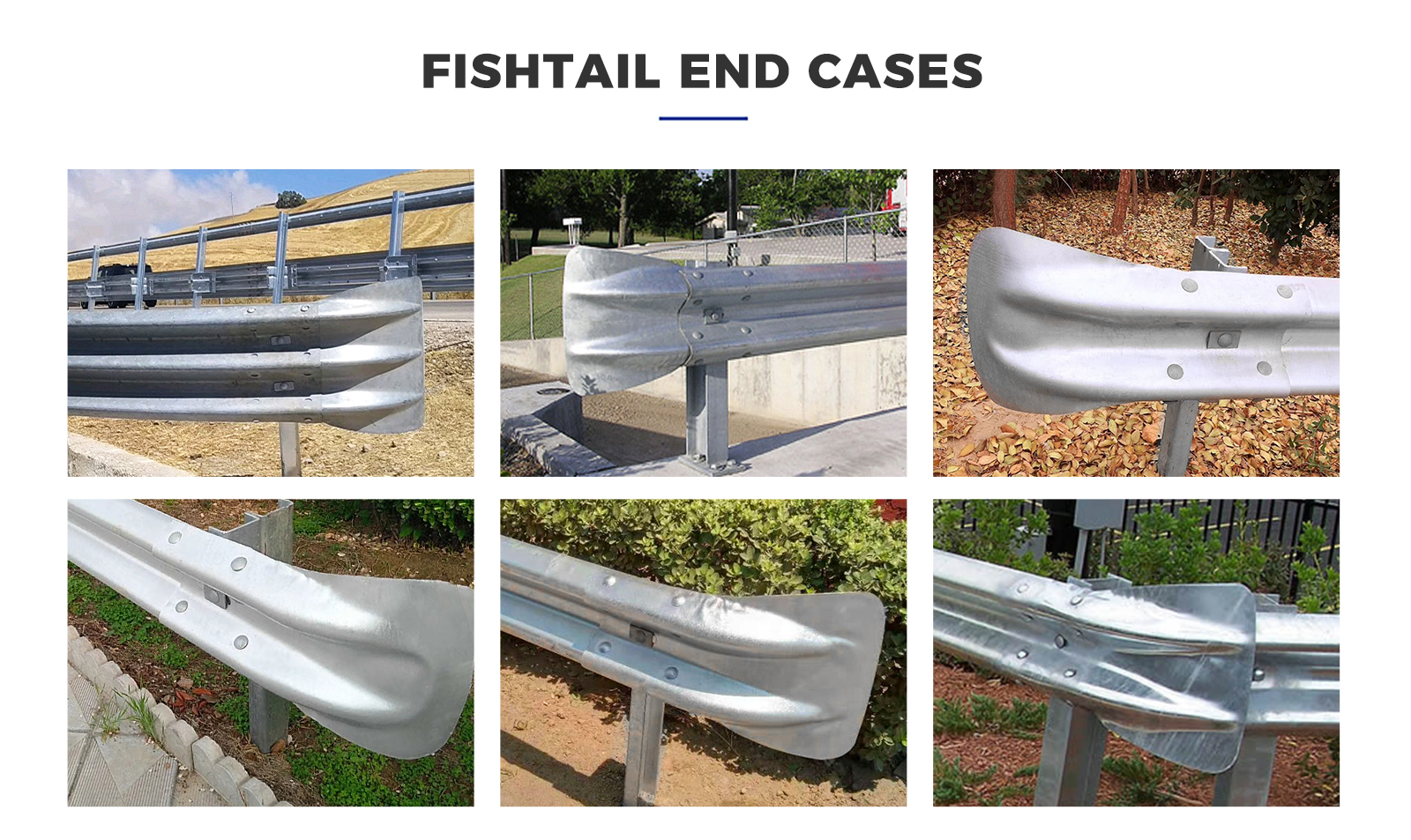

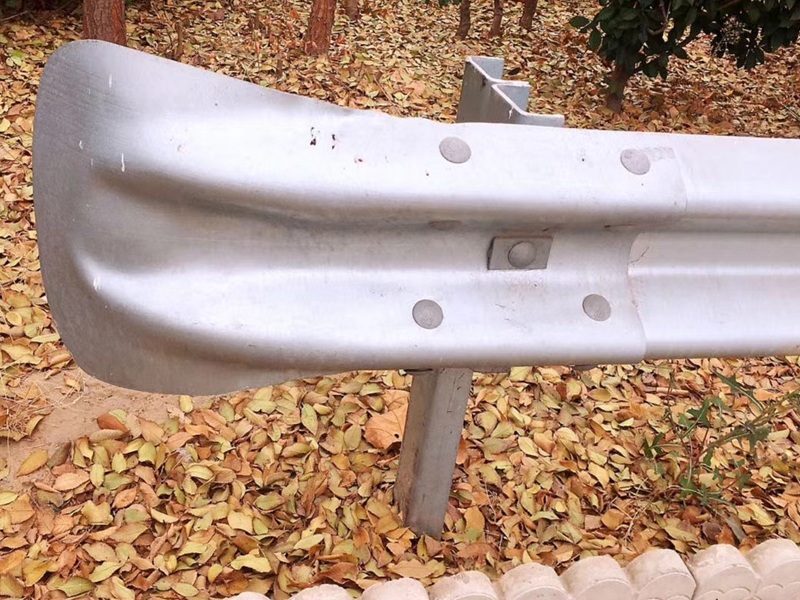

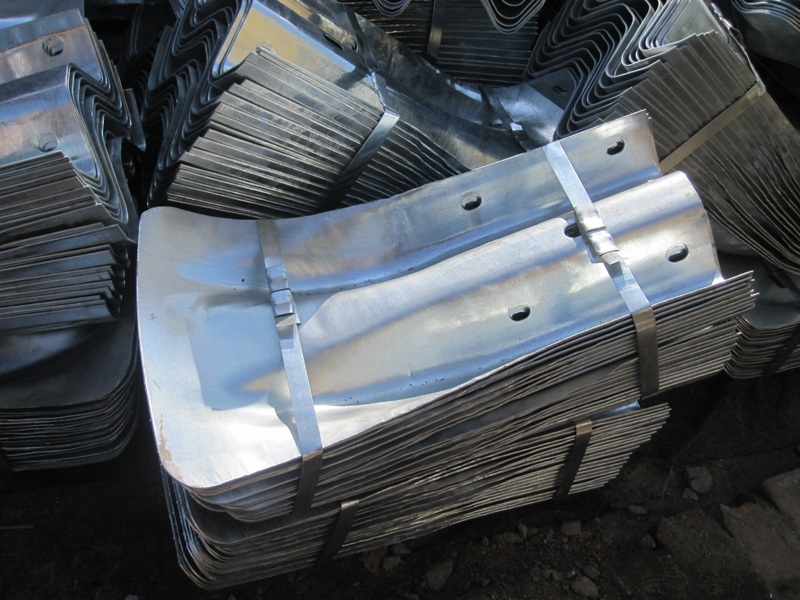

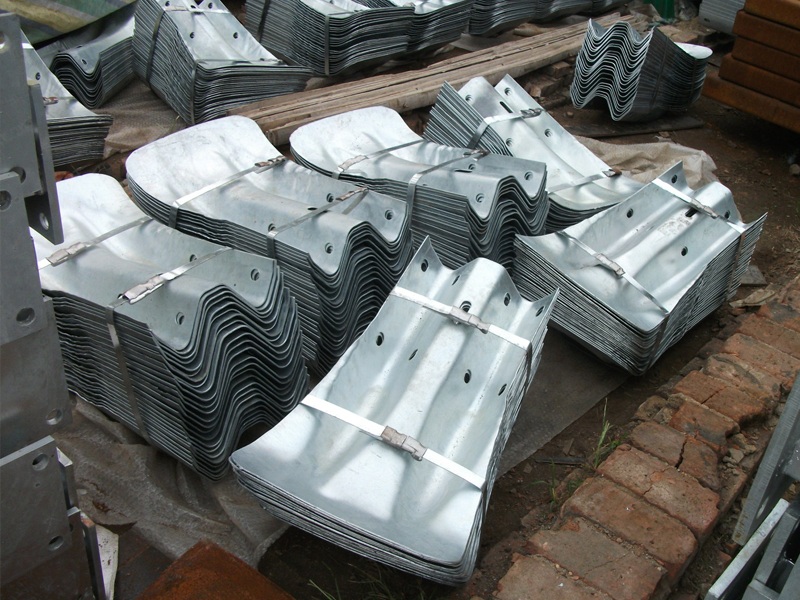

The fishtail end, is mainly refer to the European and American countries design concept, shape, like the fishtail, so called the fashtail end, also called endwing, it consists of the strip after punching and forming a molding, again through the surface hot galvanizing processing, has a simple, easy to assembly, anti-corrosion ability strong, can play the part of guide to the cars on the road and the collision effect, effectively prevent the accident vehicle out outside.

The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beam are used with W beam guardrail plate, and Thrie beam are used with Thrie beam guardrail plate.


Highway Guardrail System Parts List Per 1KM

Product

Name

Size
 (L * W * WH*T)

Post spacing: 4 m
Quantity per KM

Post spacing: 2 m
Quantity per KM

Guardrail Beam

W Beam

4320*310*83*2.75mm

250

250

Post

U Post

1820*150*75*5mm

251

501

Spacer Block

U Spacer

350*150*75*5mm

251

501

Washer

75*44*4mm

251

501

Reflector

50*70*120*1.5mm

250

250

Terminal End

  Fishtail End

2

2

Bolts & Nuts

M16*35mm

2000

2000

Bolts & Nuts

M16*40mm

502

1002

Bolts & Nuts

M16*50mm

251

501


Highway Guardrail Terminal End

Guardrail End Shape

Fishtail,Buffer,Bullnose,Anchor,Bridge,SKT Terminal End

Color

Silver (Other Colors Available Like Blue, Green)

Thickness

2.75mm,2.85mm,3.85mm,4mm or Customized

Steel Material

Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M

End Standards

JT/T2811995/AASHTO M180/RAL RG620/AS NZS/BS EN1317

Surface treatment

Hot-dip galvanized and galvanized plastic spraying coating

Zinc Coating

300g/m2 (40um),/550g/m2 (80um) ,610g/m2 (85um),1100 g/m2 (160um),1220 g/m2 (170um) or Customized

Post Feature

Great Corrosion Resistant, High Intensity, Durable

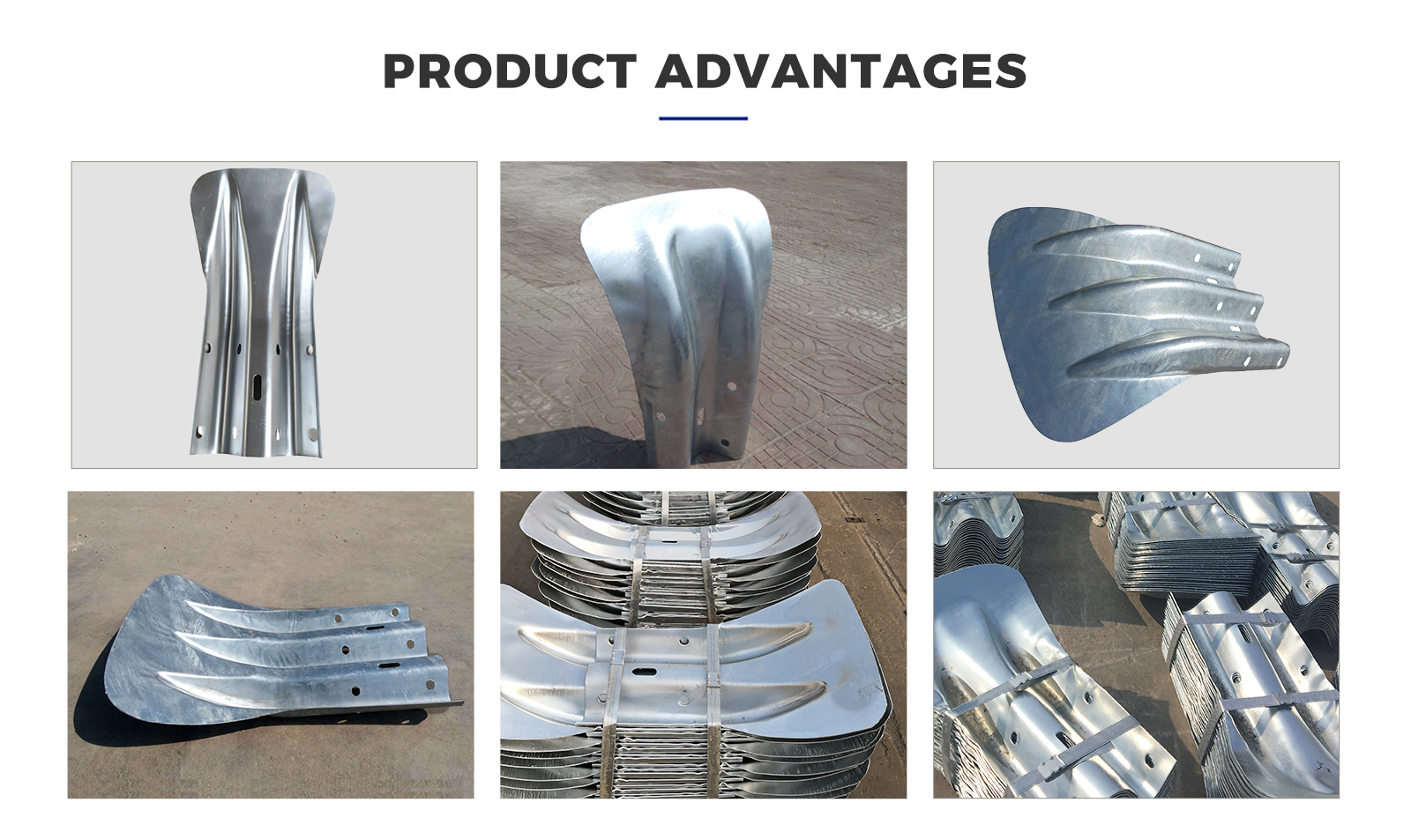

Advantages of Fishtail-shaped galvanized steel terminal end for highway guardrail  * Fully hot dip galvanized to ASTM A123.  * Superior performance, High strength, high hardness  * Easy transportation, storage and handling   * Long life and durability  * Simple design   * Cost effective


As a professional manufacturer of highway guardrail , all of our products are with  CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety.

01 High quality steel materials

Safebuild use prime steel in each guardrail design.The advanced technology isuniform and smooth, without stripping rust,and the impact of collision has reached thetraffic sector standard.


02 Strong customization capability

With a R&D team of 12 people with more than 10 years experience, our factory provides from design, mold opening to production. So far, we have provided OEM and ODM services to more than 120 customers.


03 Strict quality control system

6 QC employees and 15 steps quality checking ensure our highway guardrail 100% reaching the standards of safety. Galvanized guardrail plate, not raised and cracking, the saline spray test does not have corrosion,the phenomenon of inflated and fall off without folds after high and low temperature, strong resistance to impact resistance.


04 Professional export services

We have more than 25 years of export experience in technology research and development, quality control, packaging and shipping and other links to provide professional advice and service.
